TAMAYA Echo-Sounder TDMBII

Can be Selected from 2 Types, Depending on Application:
TDM-BII-N (Normal type)
TDM-BII-F (Full type)

TDM-BII Download Brochure

TDM-BII TDM-BII.pdf(605k)

The files with the "pdf" file extension are Adobe Acrobat "portable document format" files.

You can obtain a free viewer by following this link


Adobe Acrobat Reader

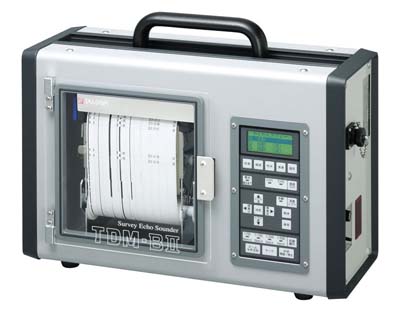

Pictured is the TDM-BII-N (Normal type).

Main Features

  • Thermal Recording Using Heat Sensitive Chart
    No Synchronization Error
  • Low Power Consumption
    6 Hours Continuous Operation with Built-in Battery.
    Car battery can also be used.
  • Automatic Printing on Chart
    Prints the time, depth, recording scale,
    correction for sound velocity
  • Clock Function
    Can print and output time at present intervals
  • Lightweight and Compact
    Only 7Kg with Built-in Battery
  • Automatic/Manual Shifts
    Option of Shifting Ranges Automatically
  • Correction for Sound Velocity
    Automatic correction is possible if sound velocity correction value is entered.

What are the advantages of using Tamaya's Echo Sounder System?

TDM-BII SPECIFICATIONS

Models TDM-BII-N
(Normal type)
TDM-BII-F
(Full type)
Recording Scales 1/100, 1/200; Optional: 1/50
Measuring Ranges Analog: 0.65 -- 100m (when bottom is flat)
Digital: 1.00 -- 100m (when bottom is flat)
Accuracy ±2cm±water depth x 1/1000
Recording Chart Heat-sensitive (thermal type) chart; width 112mm x length 25m
Chart Feeding Speed 15, 30, 45, 60, 90, 120, 240, 360mm/min.
Transducer Frequency 200KHz } 3KHz
Angle of Beam Spread of Transducer Half value, full angle: approx. 6°
Adjustment for Sensitivity Automatic adjustment (manual adjustment also possible)
Sound Velocity Correction By every 1-meter increment for the range
1300 1599m/sec.
Range of Draft Adjustment 0.0 9.9m
Items Printed on Recording Chart Time, water depth, correction value for sound velocity, and recording scale
Output of Water Depth RS-232C, 4800 baud rate, 8 bits, stop bit 2
LCD Display Time, water depth, measuring ranges, correction value for sound velocity, draft, and sensitivity

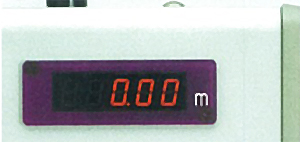

LED Display No Depth (m)
Bluetooth Connection Feature No Yes
Power Supply DC12V (built-in battery or an external battery)
Power Consumption 12V, 0.65A
Operating Time 6 hours continuous
Dimensions (W x H x D) 391 X 257 X 147mm
Weight 7Kg (with built-in battery)
Accessories Transducer, boardside fixture, battery charger, marker, 5 rolls of recording chart
Optional Items Reflection plate for sound velocity correction

Standard Accessories

Transducer

Tamayafs transducer consists of two bars which can be folded in half.
It does not take up space, and it can be easily stowed in a car.

Boardside Fixture

Tamayafs boardside fixture is designed to fit on boardsides of most small ships.
It can easily be mounted with two bolts.

Battery Charger

Optional Item

Reflection Plate for Sound Velocity Correction

Tamayafs reflection plate is used when calculating sound velocity correction value by the bar check method.
