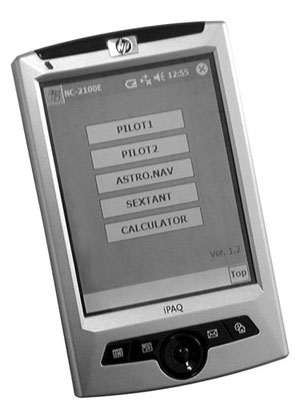

Full Automatic Piloting,
Dead Reckoning and Navigation
NC2100E.pdf (416Kb)
The files with the "pdf" file
extension are Adobe Acrobat "portable document format"
files.
You can obtain a free viewer by following this link
|
|
Simple operation with built-in programs |
|
Course and distance computation |
|
Dead reckoning computation |
|
Great Circle computation |
|
ETA computation |
|
Current computation |
|
LOP computation |
|
Meridian Passage computation |
|
Convenient conversions for to HMS and to HHH |
|
Long term Nautical Almanac for the Sun, Moon, Venus,
Mars, Jupiter, Saturn and 63 stars. The built-in Almanac
is usable until 2100, it is good with accuracy better
than 0′.2 |
|
Twilight Time mode computes time of rise or set, civil
twilight and azimuth for the Sun and rise or set, age
and azimuth for the Moon |
|
Prediction/Identification mode computes azimuth and
altitude for all celestial bodies, and displays any usable
body above the horizon |
|
Can input Latitude and Longitude from optional GPS receiver |
| 1. |
Navigation Computations for Dead
Reckoning and Piloting
PILOT 1 |
| |
a. |
Course and Distance |
| |
b. |
Dead Reckoning |
| |
c. |
Great Circle |
| |
d. |
Composite Sailing |
| |
e. |
Estimated Ttime of Arrival
|
| 2. |
Navigation Computations
for Current, True Wind, Tide, and Stream
PILOT 2 |
| |
a. |
Current
(1) Course and Speed Made Good
(2) Course and Speed to Make Good
(3) Course to Steer and Speed Made Good
(4) Set and Ddrift |
| |
b. |
Direction and Speed of True Wind |
| |
c. |
Tide at Standard Port |
| |
d. |
Tidal Stream
|
| 3. |
ASTRO.NAV |
| |
a. |
Twilight |
| |
b. |
Prediction & Identification |
| |
c. |
Nautical Almanac |
| |
d. |
Line of Position |
| |
e. |
Position Fix |
| |
f. |
Meridian Passage
|
| 4. |
SEXTANT |
| |
a. |
Altitude Corrections |
| |
b. |
Distance to Object
|
| 5. |
TIME & ARC |
| |
a. |
Time computation |
| |
b. |
Arc computation
|
| 6. |
TIME Calculations |
| |
a. |
To HMS |
| |
b. |
To HHH |
| |
c. |
Normal computations |
| Operation |
Touch panel with stylus pen |
| Power Source |
Lithium battery and AC Adaptor(AC100-240V) |
| Operating Time |
Approx. 6 hours for continuous operation |
Charging Time
|
Approx. 4 hours for full charging |
| Operating Temperature |
0℃--40℃ |
| Display |
LCD (32,768 colors) 240 x 320 dots |
| OS |
Microsoft Pocket PC |
| Card slot |
SD card slot |
| Dimensions |
70mm(W)×114mm(D)×13.4mm(H) |
| Weight |
Approx. 120g(including battery) |
| Accessories |
AC adaptor and stylus pen |
| Option |
GPS receiver for SD card |
|
