Full Automatic Piloting,
Dead Reckoning and Navigation
NC2100G.pdf (5.16Mb)
The files with the "pdf" file
extension are Adobe Acrobat "portable document format"
files.
You can obtain a free viewer by following this link
|
|
Simple operation with built-in programs |
|
Course and distance computation |
|
Dead reckoning computation |
|
Great Circle computation |
|
ETA computation |
|
Current computation |
|
LOP computation |
|
Meridian Passage computation |
|
Convenient conversions for to HMS and to HHH |
|
Long term Nautical Almanac for the Sun, Moon, Venus,
Mars, Jupiter, Saturn and 63 stars. The built-in Almanac
is usable until 2100, it is good with accuracy better
than 0′.2 |
|
Twilight Time mode computes time of rise or set, civil
twilight and azimuth for the Sun and rise or set, age
and azimuth for the Moon |
|
Prediction/Identification mode computes azimuth and
altitude for all celestial bodies, and displays any usable
body above the horizon |
| 1. |
Navigation Computations for Dead
Reckoning and Piloting
PILOT 1 |
| |
1) |
Course and Distance |
| |
2) |
Dead Reckoning |
| |
3) |
Great Circle |
| |
4) |
Composite Sailing |
| |
5) |
Estimated Time of Arrival
|
| 2. |
Navigation Computations
for Current, True Wind, Tide, and Stream
PILOT 2 |
| |
1) |
Current
(1) Course and Speed Made Good
(2) Course and Speed to Make Good
(3) Course to Steer and Speed Made Good
(4) Set and Drift |
| |
2) |
Direction and Speed of True Wind |
| |
3) |
Tide at Standard Port |
| |
4) |
Tidal Stream
|
| 3. |
ASTRO.NAV |
| |
1) |
Twilight |
| |
2) |
Prediction & Identification |
| |
3) |
Nautical Almanac |
| |
4) |
Line of Position |
| |
5) |
Position Fix |
| |
6) |
Meridian Passage
|
| 4. |
SEXTANT |
| |
1) |
Altitude Corrections |
| |
2) |
Distance to Object
|
| 5. |
TIME & ARC |
| |
1) |
Time computation |
| |
2) |
Arc computation
|
| 6. |
TIME Calculations |
| |
1) |
To HMS |
| |
2) |
To HHH |
| |
3) |
Normal computations |
| Operation |

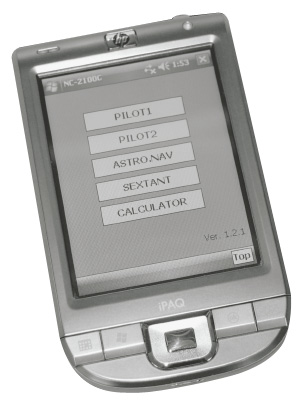

Touch panel with stylus pen |
| Power Source |
Lithium battery and AC Adaptor(AC100-240V) |
| Operating Time |
Approx. 15 hours for continuous operation |
Charging Time
|
Approx. 2～4 hours (4 hours for full charging) |
| Operating Temperature |
0℃～45℃ |
| Display |
LCD (65,536 colors) 240 x 320 dots |
| OS |
Microsoft Windows Mobile 6 Classic |
| Dimensions |
68.9mm(W)×116.7mm(D)×13.6mm(H),or 2.71 in ×0.54 in ×4.59 in |
| Weight |
114.6g(including battery), or 3.86 oz |
| Accessories |
AC adaptor and stylus pen (For more details on the accessories supplied with HP IPAQ 110 , please refer to the enclosed Getting Started CD.) |
| * The design and specifications of the PDA might change without prior notice. |
|
