1 Tamaya Digital Current Meters UC-200V/UC-300V
UC-200V

UC-200V(Versatile Type)
For use in rivers, oceans,
industrial drainage pipes,
irrigation systems, and many other fields

UC-300V

UC-300V (for Low Currents)
Designed more for accurate measurement of low current velocities

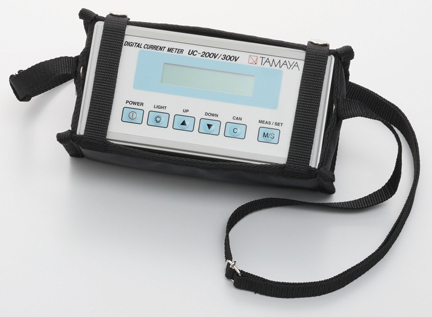

Display

Display (with Memory Function)

Main Features
  • Can Store up to 20,000 Measurement Data
  • Data Downloaded to Excel with the Optional RS-232C Cable
    (which comes with Data-Collecting Software)
  • Consistent Measurement of Current Speed with a Non-Contact Sensor
  • Displays Current Speed, Measurement Time, and Measurement Pulses
  • Averages Data from Intervals 5, 10, 20, 40, 60, and 90 seconds
  • Displays Data Real Time
  • Rainproof Display Allows for Measurements Under Bad Weather
  • Waterproof Connector Allows for Replacement of Cable Only, When Cable is Severed
  • Significantly Shorter Time Needed for Maintenance, Compared to Traditional Current Meters

Main Specifications
Models UC-200V
(Versatile type)
UC-300V
(for low currents)
Measuring ranges 0.08m/sec.-3.5m/sec. 0.03m/sec.-1.6m/sec.
Electrical contact Detection of electromagnetic elements
Display LCD 16 digits, 2 lines
Measurement modes Real-time and average current speed per 5, 10, 20, 40, 60, and 90 seconds
Data memory 20,000 measurement data (downloadable to PC using an optional RS-232C cable)
Water resistance Maximum 30m in depth
Power supply 4 of size AA battery, with continuous operating time of 40 hours or more
Cable (as an accessory) Standard is 10m (can be altered, open to discussion)
Inspection certificate Inspection certificate by CERES Inc.
Sensor 12 x 12 x 40cm, 2.0Kg 5 x 7 x 25cm, 0.6Kg
Display W16 x H7 x D8cm, 0.66Kg
Carrying case 46 x 24 x 30cm, 3.2Kg 35 x 20 x 22cm, 1.9Kg
Standard accessories 1. 10-meter cable
2. Sinker 4Kg in weight
3. Case for display
1. 10-meter cable
2. Measuring rod, 1-meter long
3. Case for display
Optional items 1. RS-232C computer cable with data-collecting software
2. Extension rod: 1-meter long, 2 pcs
1. RS-232C computer cable with data-collecting software
