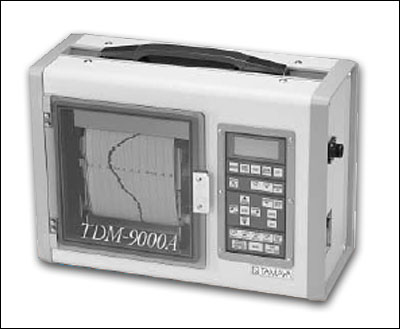

No pen driving motor, no synchronization error |
|
Compact (363 x 256 x 120mm) and lightweight (7.0 kgs) |
|
Small power consumption (10W) |
|
Maintenance is very simple. |
|
Data can be output by RS-232C interface |
|
No unneeded signal |
|
Sound velocity correction value is input automatically. |
|
|
Increased sharpness of direction angle and reduced size
of transducer (120 dia. x 50mm) by peak value detection
method. |
| Measurement range |
0.7m -- 100m (1/100), 0.7m -- 120m
(1/200) |
| Measurement precision |
¯3cm¯ water depth x 1/1000 |
| Recording method |
Linear recording memory storage |
| Recording scale |
1/100, 1/200; options: 1/50, 1/500 |
Recording form
|
Heat sensitive sheet (thermal type) |
| Size of recording form |
Length 25m, width 112mm |
| Form feeding speed |
15mm/min., 30mm/min., 45mm/min., 60mm/min.,
90mm/min., 120mm/min., 240mm/min., and 360mm/min. |
| Transducer frequency |
200KHz¯30KHz |
| Direction angle of transducer |
Half value half angle, about 3° |
| Output |
20W |
| Oscillation method |
Transistor method |
| Depth output |
RS-232C |
| Power supply |
DC12V |
| Power consumption |
10W (Operation time: 6 hours continuously) |
| Dimensions |
363W x 256H x 120D mm |
| Weight |
7.0 kgs (Built-in battery) |
| Accessories |
Transducer, boardside fixture, charger,
marker, 5 rolls of recording paper |
|
| Baud è\te: |
4800(Fixed) |
| Data: |
8 bits |
| Parity: |
None |
| Stop bits : |
2 |
|
 |
E Output data format is as followsF
E When the switch is not pressed, it disappears and remains
blank space.
|
